Business TV App
Create, schedule and display customised content from compatible Android or iOS devices using Samsung's Business TV workflow.
Key capabilities
BE55FX-H platform highlights
Samsung VXT
Supports Samsung VXT cloud content/device management. Samsung specifies the VXT S Series plan for BEFX-H.
Live television
RF input and TV functionality remain available alongside business content use.
4K picture
3840 × 2160 resolution with Crystal Processor 4K, HDR10+ support and 4K upscaling.
Network connectivity
Ethernet, Wi-Fi 5 and Bluetooth 5.3 support connected business workflows.
Built-in audio
2-channel integrated speakers rated at 10 W + 10 W in Samsung's BEFX-H technical documentation.
Technical reference

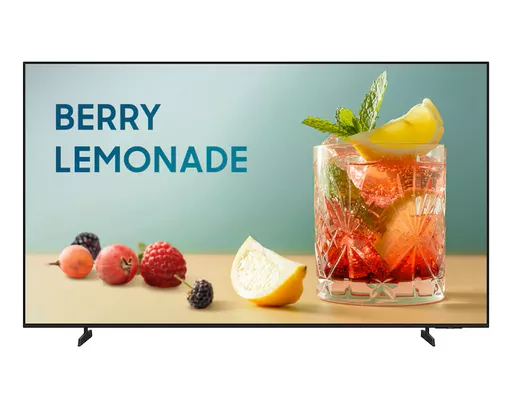

BE55FX-H specifications
| Model | BE55FX-H |
|---|---|
| Malaysia model code | LH55BEFHVGKXXM |
| Screen size | 55″ |
| Resolution | 3840 × 2160 (4K UHD) |
| Typical brightness | 300 cd/m² |
| Operation time support | 16/7 |
| Operating system | Tizen Smart TV |
| Content tools | Samsung Business TV App; Samsung VXT support (BEFX-H: VXT S Series plan) |
| Connectivity | 3 × HDMI, 1 × USB-A, Ethernet/LAN, RF input, Wi-Fi 5, Bluetooth 5.3 |
| Dimensions without stand | 1224.6 × 707.8 × 76.6 mm |
| Weight without stand | 9.6 kg |
| VESA | 200 × 200 mm |
Malaysia model identity is verified against Samsung Malaysia support. Mechanical/platform data is cross-checked with Samsung's official BEFX-H documentation. Current availability, mounting hardware, warranty route and project compatibility should be verified at quotation stage.
System dependencies
Complete the 55″ Business TV installation
Mounting
Confirm bracket support for 200 × 200 mm VESA and at least the required safe working load, including installation/service access.
Mounting guidance →Content management
Decide whether the local Business TV App is sufficient or whether Samsung VXT is required for remote content/device management.
Samsung VXT →Signal & network
Plan RF/live-TV source, HDMI devices, LAN/Wi-Fi connectivity and the site's network/security requirements.
Lifecycle & selection
New project or installed system?
New project
BE55FX-H is a verified current Malaysia BEFX-H reference. Stock/channel status, accessories and warranty should still be verified at quotation stage.
Replacing an older BED-H?
Identify the exact installed model and mounting/network conditions first. A replacement should be checked for mechanical, workflow and content-management compatibility rather than selected by screen size alone.
Assess installed product →Business TV vs signage
Make sure this is the right category
If the application requires 24/7 duty cycle, higher brightness, portrait orientation or signage-specific professional I/O/control, compare Samsung Smart Signage instead of assuming a Business TV is suitable.
Compare Samsung Signage Displays →Continue through PNSS
From exact model to complete deployment
Need help selecting the right Samsung Business TV?
PNSS can review screen size, viewing distance, mounting, live-TV source, content workflow, network requirements and VXT needs before confirming the Malaysia model and quotation.
