28.5 mm ultra-slim cabinet
Helps the display sit neatly in corporate, retail, education and public-information environments.

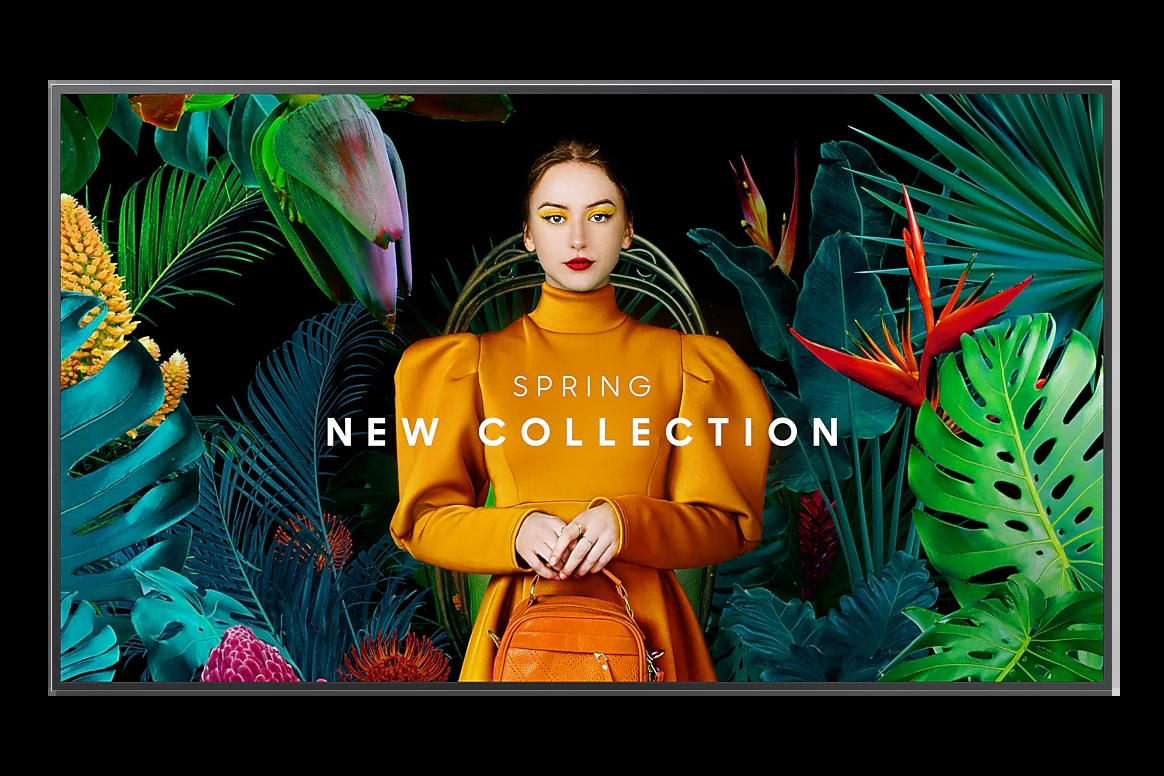

Official Samsung QHC series imagery. Screen artwork and the pictured example size are illustrative; the model dimensions and Malaysia SKU below apply to QH43C.
Samsung QHC Series · Signage Display
Samsung QH43C 43″ 4K UHD Signage Display
Malaysia model codeLH43QHCEBGCXXS
Product identity: Samsung QH43C · 43″ · QHC Series · Malaysia SKU LH43QHCEBGCXXS · Crystal UHD professional signage
High-brightness 24/7 professional signage with 4K UHD resolution, 700 nit typical brightness and 24/7 operation support.
43″Screen size
4K UHD3840 × 2160
700 nitTypical brightness
24/7Operation rating
Choose another QHC size
Professional signage platform
Designed for commercial visual communication
The QH43C combines Samsung’s slim QxC cabinet design with professional signage connectivity, portrait/landscape mounting capability and a Tizen-based internal signage platform.
Dynamic Crystal Color & 4K processing
Samsung’s Crystal UHD signage platform delivers detailed 4K presentation with professional image processing.
Even bezel & centred VESA
Supports balanced landscape or portrait mounting, subject to the final bracket and wall structure.
SmartView+
Wireless screen sharing supports quick collaboration and source switching for compatible devices.
Samsung VXT ready
Compatible with Samsung VXT cloud content and device management. VXT licence/subscription is sold separately.
Professional control
RJ45 LAN, RS232 in/out, Wi-Fi and Bluetooth support integration into managed commercial environments.
Technical reference
QH43C specifications
| Model | QH43C |
|---|---|
| Malaysia model code | LH43QHCEBGCXXS |
| Screen size | 43″ |
| Panel type | VA |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness (typ.) | 700 nit |
| Contrast ratio | 4,000:1 |
| Viewing angle | 178° / 178° |
| Response time | 8 ms |
| Pixel pitch | 0.245 × 0.245 mm |
| Panel haze | 25% |
| Operation support | 24/7 |
| Set dimensions (W × H × D) | 969.5 × 557.8 × 28.5 mm |
| Set weight | 9.3 kg |
| Package dimensions | 1093 × 667 × 126 mm |
| Package weight | 11.8 kg |
| VESA mount | 200 × 200 mm |
| Bezel | 11.5 mm even |
| On-mode power | 132 W |
| Sleep power | 0.5 W |
| Operating system | Tizen 7.0 |
| Flash memory | 16GB |
| EMC | Class B |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. Current Malaysia availability and warranty terms should be verified at quotation stage. Samsung Malaysia product reference ↗
Connectivity & integration
Professional AV and network connectivity
| HDMI inputs | 3 × HDMI 2.0 |
|---|---|
| DisplayPort | 1 × DisplayPort 1.2 |
| USB | 2 × USB |
| Network | RJ45 LAN + Wi-Fi |
| Control | RS232 In / Out, IR In |
| Wireless | Wi-Fi + Bluetooth |
| Audio output | Stereo mini jack |
| HDCP | 2.2 |
Application guidance
Where QH43C fits
Bright retail interiors, transport/public information, lobbies, high-ambient-light commercial areas and premium communication displays.
Corporate communicationRetail signageEducationWayfindingPublic informationMeeting & presentationManaged signage
Selection considerations: Display size should be chosen together with viewing distance, content layout, ambient light, daily operating hours, portrait/landscape orientation, wall or ceiling structure, content source and remote-management requirements.
Same size · different operating class
Compare Samsung 43″ signage across QBC, QMC and QHC
Keep the screen size constant, then choose the display family by brightness, operating hours and environment. This creates a direct model-to-model shortlist without mixing sizes.
QEC is also part of the Samsung Smart Signage portfolio. It is not shown in this same-size comparison because the current listed QEC model is QE98C at 98 inches.
Samsung QBC Series
QB43C 43″
350 nit
16/7 operation · Malaysia SKU LH43QBCEBGCXXS · Standard indoor signage.
View Samsung QB43C 43″ →Samsung QMC Series
QM43C 43″
500 nit
24/7 operation · Malaysia SKU LH43QMCEPGCXXS · Mainstream 24/7 indoor signage.
View Samsung QM43C 43″ →Samsung QHC Series
QH43C 43″
700 nit
24/7 operation · Malaysia SKU LH43QHCEBGCXXS · Higher-brightness 24/7 indoor signage.
Current pageFull Samsung Smart Signage portfolio
QEC · QBC · QMC · QHC
The same-size comparison on this page covers QBC, QMC and QHC because those families share mainstream screen sizes. The wider Samsung Smart Signage portfolio also includes QEC, currently represented by the QE98C 98-inch large-format display.
System dependencies
Complete the signage deployment
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Physical integration
Mounting & structure
Confirm VESA/load, orientation and service access.
Open related area →Platform
Content / device management
Plan content scheduling, management and remote operations.
Open related area →System design
Signal, network & installation
Coordinate sources, network, power and deployment requirements.
Open related area →Product family navigation
Continue from this model
Return to Crystal UHD professional signage, continue to the relevant solution, or open a selection guide without losing product context.
New project / active selection
Select through the current family
Use the parent family and solution links to compare application fit. Current Malaysia availability, exact SKU, warranty terms and compatible accessories should be verified at quotation stage.
Existing installed product
Assess support before replacing it
Already installed? Identify the exact model and condition first, then verify lifecycle, parts/software support and the practical repair or migration path.
Open legacy & replacement support →Need help selecting the right Samsung signage display?
Display selection should consider screen size, ambient light, duty cycle, mounting, signal distribution, network requirements and Samsung VXT content-management needs together.
