Outdoor visibility
High brightness supports content visibility under changing daylight conditions.

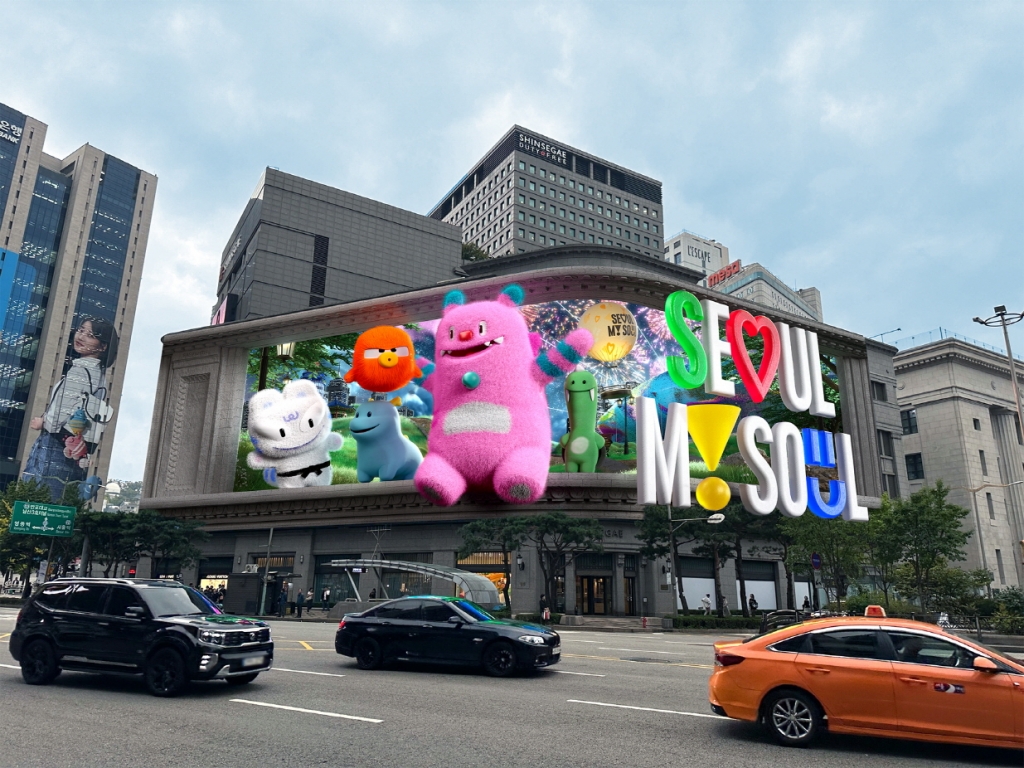

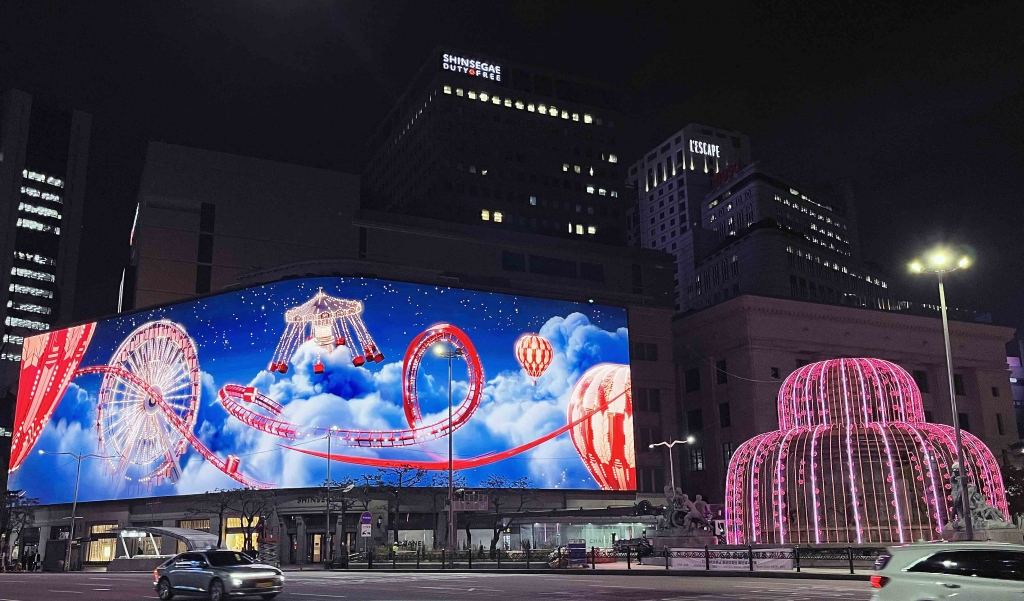

Outdoor application imagery is from Samsung outdoor LED installations and is used as an application reference; it is not intended to depict the exact XAT cabinet. The technical table and Malaysia SKU apply to the selected Samsung XAT pixel pitch.
Samsung XAT Series · Outdoor LED
Samsung XAT P10 Outdoor LED Signage
Malaysia model codeLH100XATSAC/XM
Samsung XAT outdoor LED with 10 mm pixel pitch and 6000 nit brightness for custom-size high-visibility outdoor signage.
10 mmPixel pitch
6000 nitBrightness
IP65Protection
OutdoorEnvironment
Choose another XAT Series option
Key capabilities
XAT Series platform highlights
IP65 front & back
Environmental protection is designed for outdoor deployment.
Wide operating range
Specified for -30°C to 50°C and 10–90% humidity conditions.
Front/rear service
Flexible access can reduce maintenance constraints depending on the structure.
Protected power design
Integrated electrical protection supports stable outdoor operation.
Complete engineering scope
Outdoor LED requires structural, electrical, lightning/surge, data and access coordination beyond the LED cabinets alone.
Technical reference
XAT P10 specifications
| Model | XAT P10 |
| Malaysia model code | LH100XATSAC/XM |
| Pixel pitch | 10 mm |
| Pixel configuration | 96 × 96 |
| Diode type | SMD2727 |
| Brightness | 6000 nit |
| Contrast ratio | 3000:1 |
| Viewing angle | 140° / 100° |
| Video rate | 50/60 Hz |
| Input voltage | 100–120 VAC or 200–240 VAC |
| Maximum power consumption | 780 W/m² |
| Refresh rate | 7680 Hz |
| Working environment | -30°C to 50°C / 10–90% RH |
| IP protection | IP65 front / IP65 back |
| EMC | Class A |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. PNSS reconfirms current Malaysia availability, accessories and warranty terms before quotation. Samsung Malaysia product reference ↗
PNSS application guidance
Where XAT P10 fits
Outdoor façades, roadside signage, building information displays and high-visibility advertising where the selected pixel pitch suits the viewing distance.
Building façadeRoadside signageOutdoor advertisingPublic informationTransport environmentLarge-format exterior display
PNSS selection note: PNSS will coordinate LED resolution, cabinet count, structural engineering, wind loading, electrical circuits, grounding, surge/lightning protection, controller architecture, access and weatherproofing requirements.
