Modular architecture
Build custom display dimensions instead of selecting a fixed diagonal screen size.

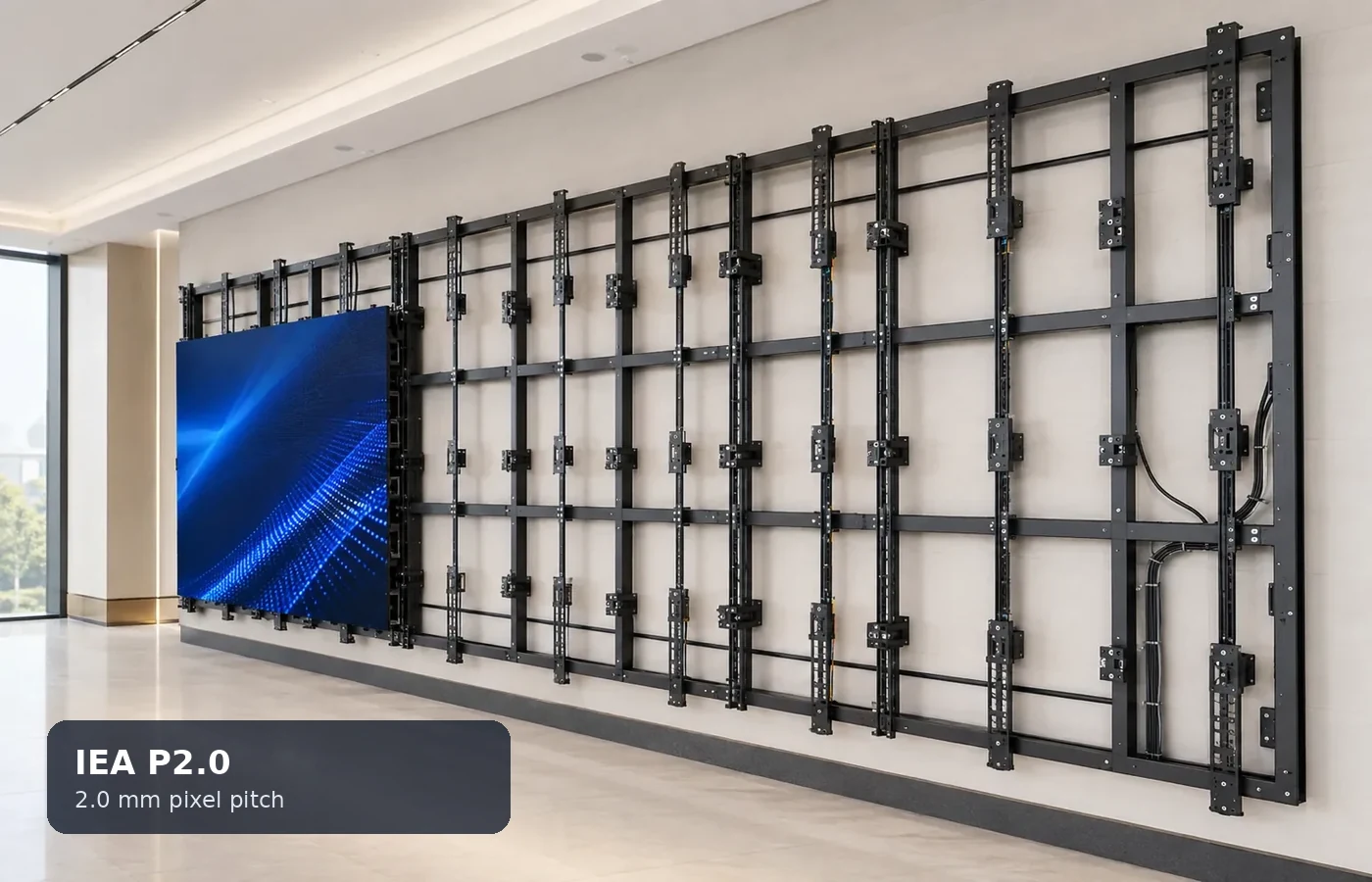

IEA P2.0 uses the common IEA cabinet family architecture. Samsung family visuals can be shared across pixel-pitch variants; this page clearly identifies the selected 2.0 mm model/SKU rather than implying a different enclosure.
Samsung IEA Series · Indoor LED
Samsung IEA P2.0 Indoor LED Signage
Malaysia model codeLH020IEACLS/XS
Samsung IEA indoor LED module with 2.0 mm pixel pitch, 500-nit brightness and 3840 Hz refresh rate for custom-size LED wall applications.
2.0 mmPixel pitch
500 nitBrightness
3840 HzRefresh
IndoorEnvironment
Choose another IEA Series option
Key capabilities
IEA Series platform highlights
500-nit indoor brightness
Designed for indoor retail, corporate and public-space LED applications.
3840 Hz refresh
High refresh-rate presentation supports smooth motion and camera-friendly content capture.
Flexible geometry
Supports suitable portrait, landscape, curved, L-shaped and ceiling configurations.
Calibration workflow
Samsung LED Signage Manager and calibration tools help manage uniformity.
System design required
Controller, S-Box, power, receiving architecture, structure and service access must be engineered as one system.
Technical reference
IEA P2.0 specifications
| Model | IEA P2.0 |
| Malaysia model code | LH020IEACLS/XS |
| Pixel pitch | 2.0 mm |
| Pixel configuration | 480 × 270 |
| Diode type | 3-in-1 1212 |
| Brightness | 500 nit |
| Contrast ratio | 7500:1 |
| Viewing angle | 150° / 150° |
| Refresh rate | 3840 Hz |
| Video rate | 60 Hz |
| Input voltage | 100–240 VAC |
| Maximum power consumption | 367 W/m² |
| Working environment | 0°C to +40°C / 10–80% RH |
| IP rating | IP20 |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. PNSS reconfirms current Malaysia availability, accessories and warranty terms before quotation. Samsung Malaysia product reference ↗
PNSS application guidance
Where IEA P2.0 fits

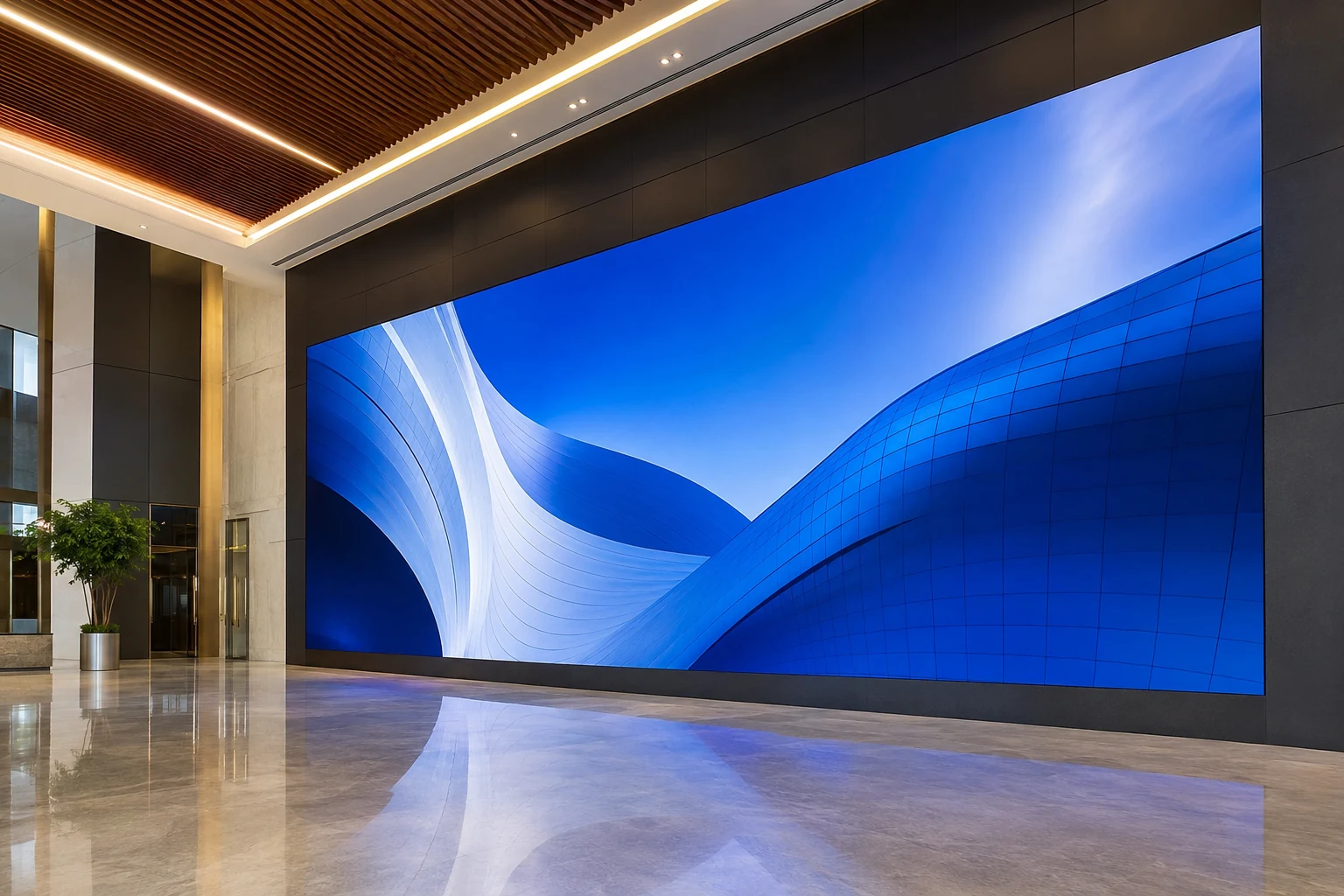

Indoor LED walls where the selected pixel pitch matches the minimum viewing distance, content resolution, physical wall size and budget.
Retail LED wallCorporate lobbyShowroomAuditorium backdropInformation wallCustom aspect-ratio display
PNSS selection note: PNSS will calculate total LED resolution, cabinet quantity, wall dimensions, load, power circuits, controller/S-Box, data path, structure, heat/service access and spare-module strategy before quotation.
