Modular architecture
Build custom display dimensions instead of selecting a fixed diagonal screen size.
IEA P1.5 uses the common IEA cabinet family architecture. Samsung family visuals can be shared across pixel-pitch variants; this page clearly identifies the selected 1.5 mm model/SKU rather than implying a different enclosure.
Samsung IEA Series · Indoor LED

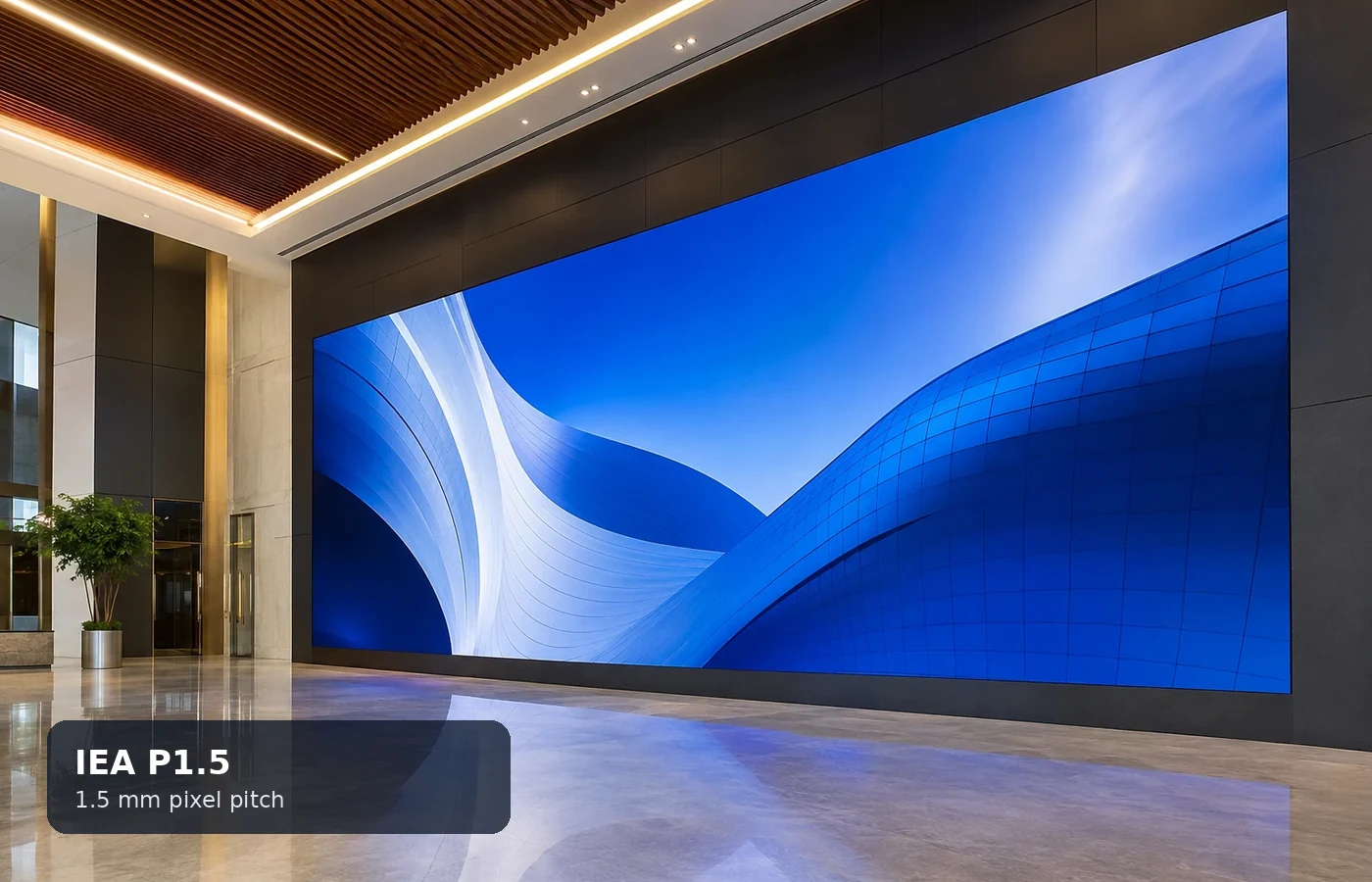

Samsung IEA P1.5 Indoor LED Signage
Malaysia model codeLH015IEACLS/XS
Samsung IEA indoor LED module with 1.5 mm pixel pitch, 500-nit brightness and 3840 Hz refresh rate for custom-size LED wall applications.
1.5 mmPixel pitch
500 nitBrightness
3840 HzRefresh
IndoorEnvironment
Choose another IEA Series option
Key capabilities
IEA Series platform highlights
500-nit indoor brightness
Designed for indoor retail, corporate and public-space LED applications.
3840 Hz refresh
High refresh-rate presentation supports smooth motion and camera-friendly content capture.
Flexible geometry
Supports suitable portrait, landscape, curved, L-shaped and ceiling configurations.
Calibration workflow
Samsung LED Signage Manager and calibration tools help manage uniformity.
System design required
Controller, S-Box, power, receiving architecture, structure and service access must be engineered as one system.
Technical reference
IEA P1.5 specifications
| Model | IEA P1.5 |
|---|---|
| Malaysia model code | LH015IEACLS/XS |
| Pixel pitch | 1.5 mm |
| Pixel configuration | 640 × 360 |
| Diode type | 3-in-1 1212 |
| Brightness | 500 nit |
| Contrast ratio | 6000:1 |
| Viewing angle | 150° / 150° |
| Refresh rate | 3840 Hz |
| Video rate | 60 Hz |
| Input voltage | 100–240 VAC |
| Maximum power consumption | 367 W/m² |
| Working environment | 0°C to +40°C / 10–80% RH |
| IP rating | IP20 |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. Current Malaysia availability, accessories and warranty terms should be verified at quotation stage. Samsung Malaysia product reference ↗
Application guidance
Where IEA P1.5 fits
Indoor LED walls where the selected pixel pitch matches the minimum viewing distance, content resolution, physical wall size and budget.
Retail LED wallCorporate lobbyShowroomAuditorium backdropInformation wallCustom aspect-ratio display
Selection considerations: PNSS will calculate total LED resolution, cabinet quantity, wall dimensions, load, power circuits, controller/S-Box, data path, structure, heat/service access and spare-module strategy before quotation.
System dependencies
Complete the LED display system
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Physical integration

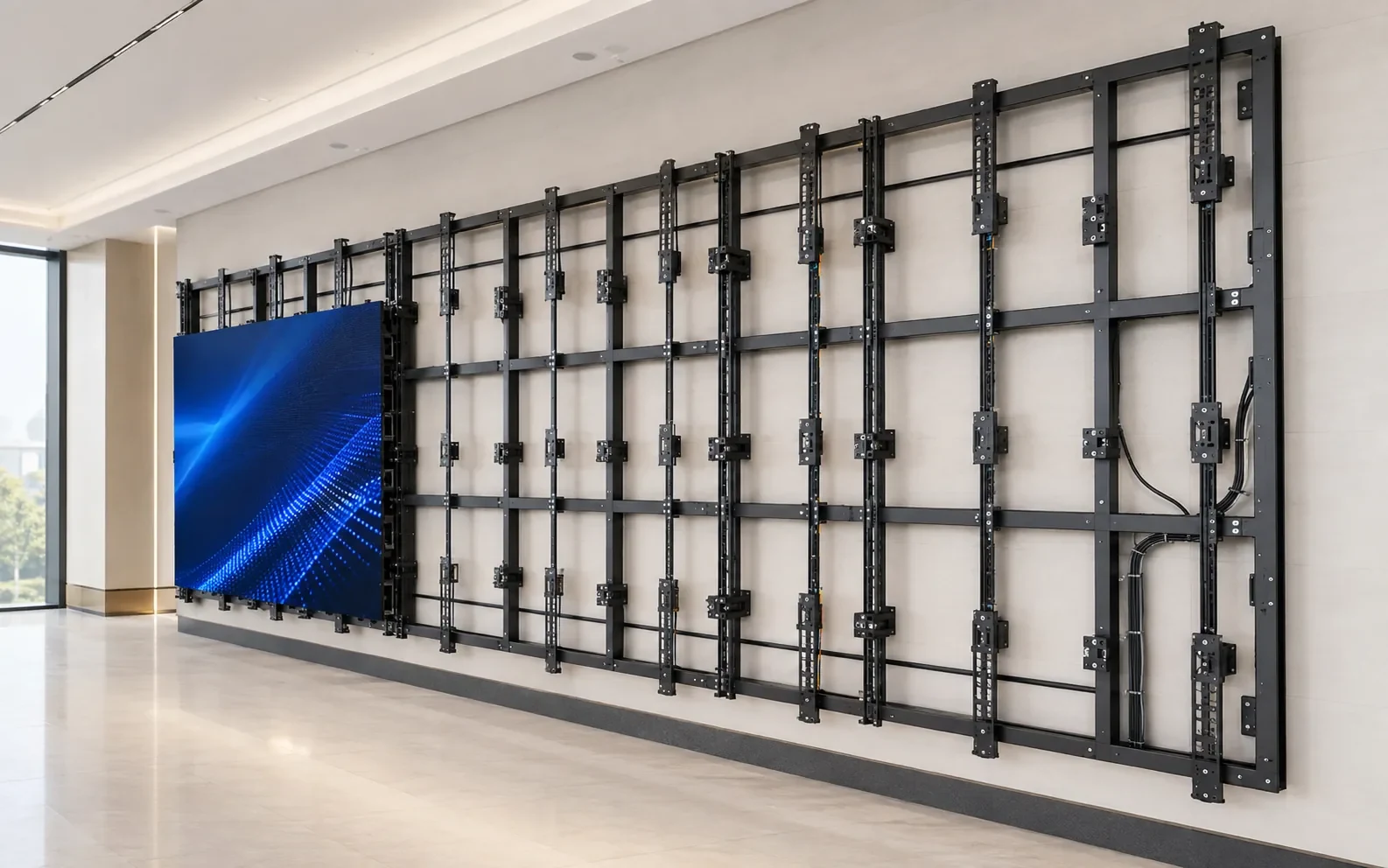

Structure & service access
Coordinate load, structure, access and installation environment.
Open related area →System design
Content & control
Plan the content/control platform and operational workflow.
Open related area →Engineering check
Power, signal & network
Validate power distribution, signal/control paths and network requirements for the final design.
Product family navigation
Continue from this model
Return to Samsung Indoor LED, continue to the relevant solution, or open a selection guide without losing product context.
New project / active selection
Select through the current family
Use the parent family and solution links to compare application fit. Current Malaysia availability, exact SKU, warranty terms and compatible accessories should be verified at quotation stage.
Existing installed product
Assess support before replacing it
Already installed? Identify the exact model and condition first, then verify lifecycle, parts/software support and the practical repair or migration path.
Open legacy & replacement support →Need help selecting the right Samsung solution?
Project selection should consider application requirements, display or LED sizing, mounting, signal distribution, network infrastructure, content management and service access together.
