Narrow-bezel video wall
Purpose-built bezels reduce visual interruption between adjacent panels in tiled display arrays.
Samsung product imagery is used where available together with PNSS video-wall application imagery. The exact specification table and Malaysia SKU apply to this selected model.
Samsung Video Wall · Video Wall

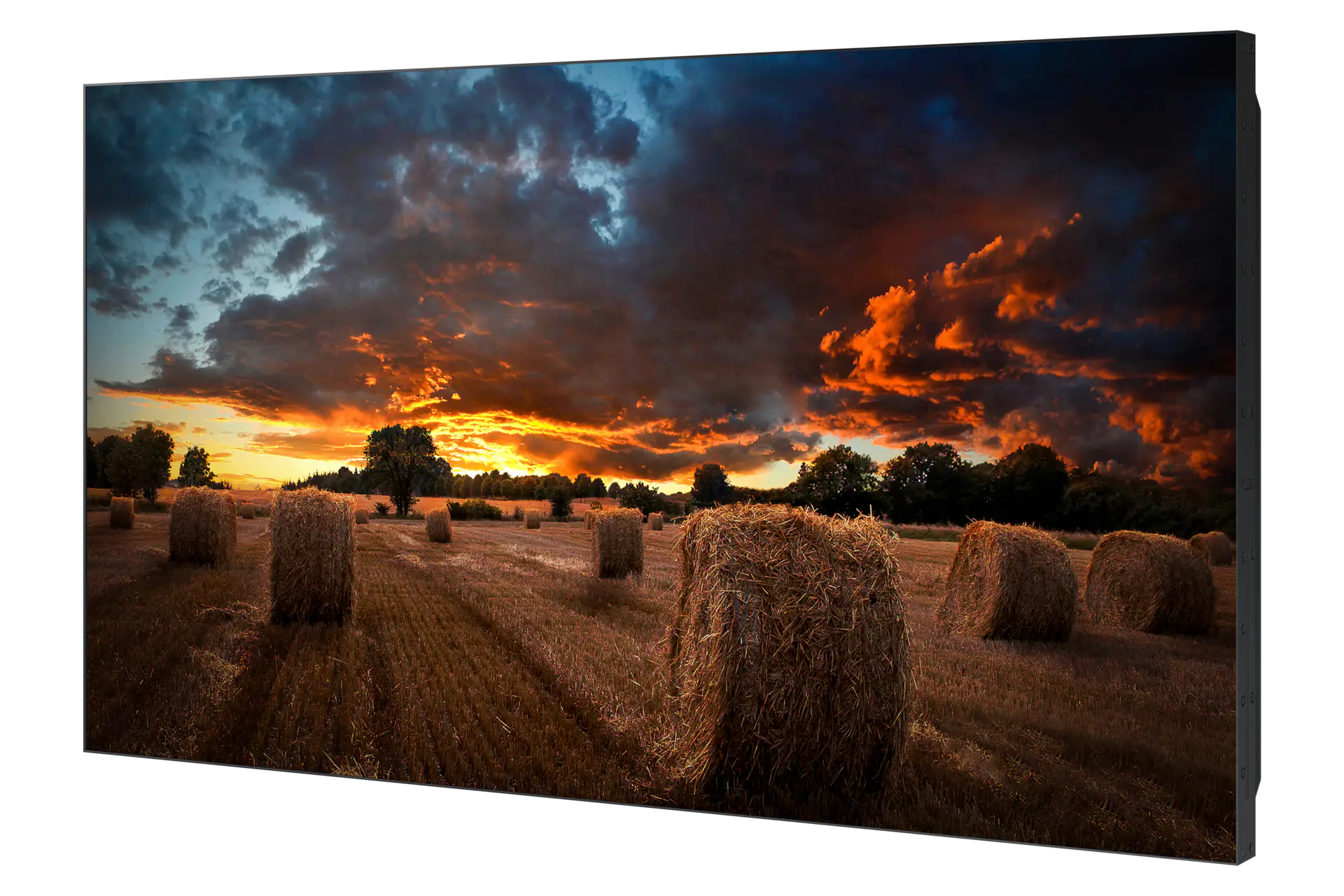

Samsung VM46B-U 46″ Full HD Video Wall Display
Malaysia model codeLH46VMBUBGBXXS
46-inch professional video-wall panel with 500-nit brightness, 24/7 operation and a 3.5 mm bezel-to-bezel specification.
46″Screen size
FHDResolution
500 nitBrightness
3.5 mmBezel-to-bezel
Key capabilities
Video Wall platform highlights
24/7 operation
Designed for always-on professional monitoring and information environments.
IPS wide viewing angle
Supports consistent viewing across multi-screen command-centre and public-display layouts.
Calibration support
Samsung factory calibration and Color Expert tools help maintain brightness and colour consistency.
Daisy-chain capability
DisplayPort/HDMI workflows can simplify multi-screen distribution depending on the final source architecture.
IP5x validated
Dust-protection validation supports professional installations, subject to the stated Samsung operating conditions.
Technical reference
VM46B-U specifications
| Model | VM46B-U |
|---|---|
| Malaysia model code | LH46VMBUBGBXXS |
| Screen size | 46″ |
| Panel type | IPS |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 500 nit |
| Contrast ratio | 1,200:1 |
| Viewing angle | 178° / 178° |
| Response time | 8 ms |
| Panel haze | 25% |
| Operation support | 24/7 |
| Set dimensions (W × H × D) | 1022 × 577 × 69.9 mm |
| Set weight | 15.7 kg |
| Package dimensions | 1193 × 719 × 257 mm |
| Package weight | 22.2 kg |
| VESA mount | 600 × 400 mm |
| Bezel | 3.5 mm B2B; 2.25 mm U/L + 1.25 mm R/B |
| On-mode power | 160 W |
| Sleep power | 0.5 W |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. Current Malaysia availability, accessories and warranty terms should be verified at quotation stage. Samsung Malaysia product reference ↗
Connectivity & integration
Integration reference
| HDMI inputs | 2 × HDMI 2.0 |
|---|---|
| DisplayPort | 1 × DP 1.2 |
| DVI input | 1 |
| USB | 1 |
| Network | RJ45 LAN |
| Control | RS232 In / Out + IR In |
| Audio | Audio In + Stereo Mini Jack Out |
| Wi-Fi | No |
Application guidance
Where VM46B-U fits
Command centres, security monitoring, operations rooms and tiled information walls where a 46-inch 3.5 mm B2B panel fits the required array geometry.
Command centreSecurity monitoringControl roomCorporate lobbyOperations dashboardMulti-screen information
Selection considerations: PNSS will coordinate the complete wall geometry, mounting frame, service access, signal distribution, decoder/controller architecture and panel alignment.
System dependencies
Complete the video-wall system
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Physical integration
Mounting structure
Plan alignment, service access, load and wall/ceiling support as part of the wall design.
Open related area →Platform
Content / device management
Define how content and display management will be operated.
Open related area →System architecture
Signal distribution & system design
Confirm source layout, signal transport, control, network and redundancy requirements.
Open related area →Product family navigation
Continue from this model
Return to Samsung Video Wall Displays, continue to the relevant solution, or open a selection guide without losing product context.
New project / active selection
Select through the current family
Use the parent family and solution links to compare application fit. Current Malaysia availability, exact SKU, warranty terms and compatible accessories should be verified at quotation stage.
Existing installed product
Assess support before replacing it
Already installed? Identify the exact model and condition first, then verify lifecycle, parts/software support and the practical repair or migration path.
Open legacy & replacement support →← Samsung Video Wall DisplaysCommercial Displays & Digital Signage →Samsung signage selection guide →
Other items in this family
Need help selecting the right Samsung solution?
Project selection should consider application requirements, display or LED sizing, mounting, signal distribution, network infrastructure, content management and service access together.
