Self-service platform
Designed for ordering, payment, check-in, ticketing and information workflows.

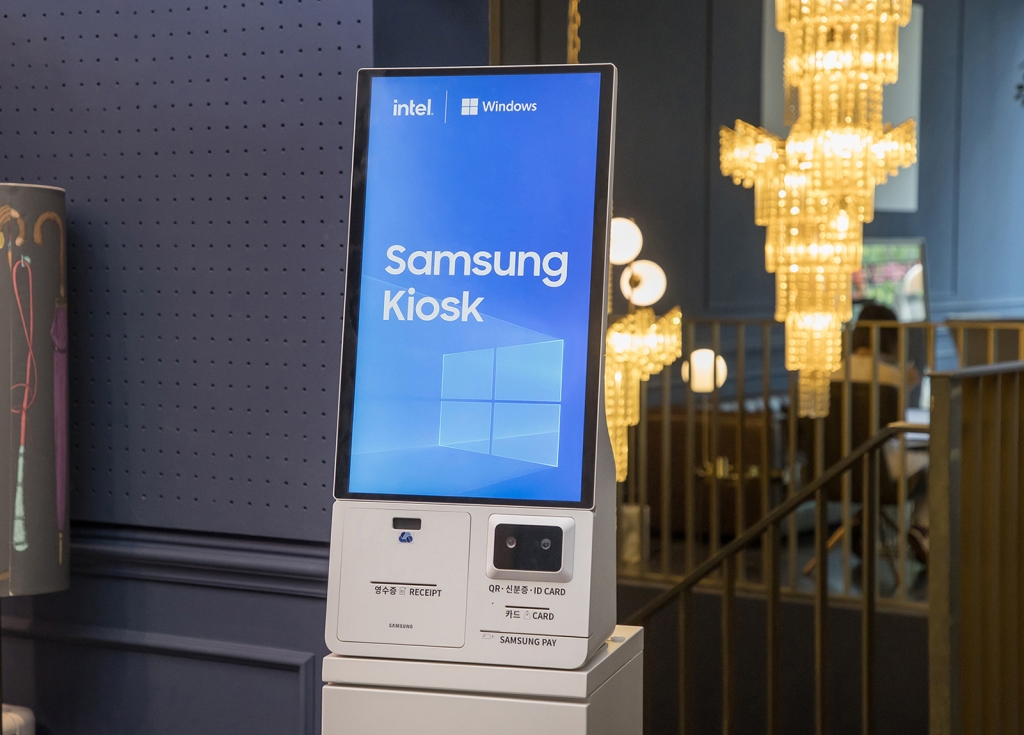

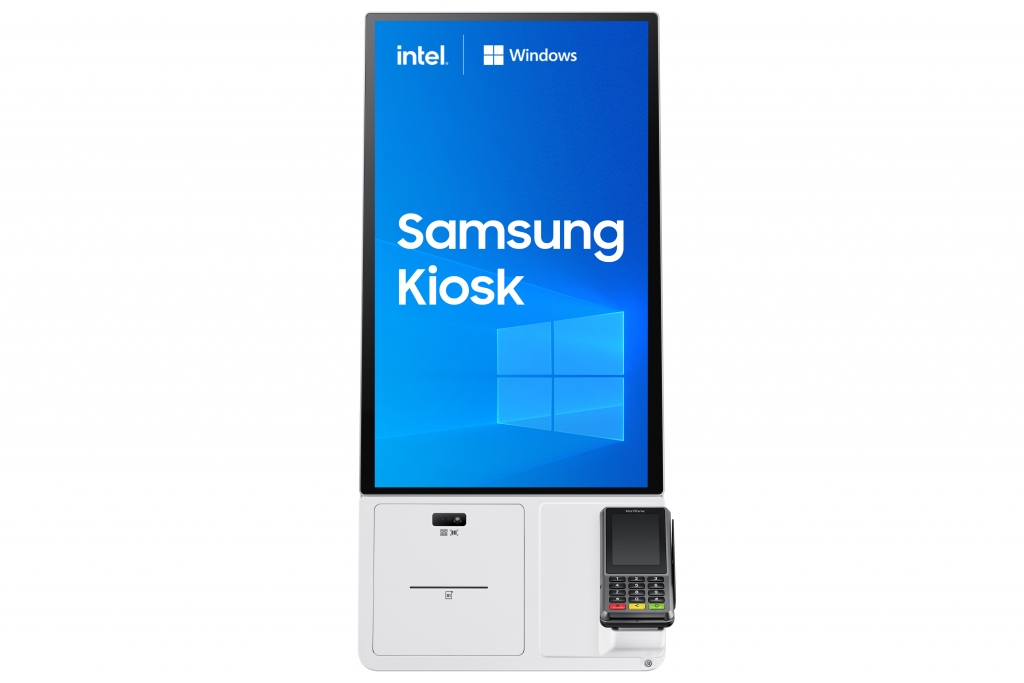

Official Samsung KMC Windows Kiosk family imagery. KM24C-3 shares the KMC physical platform; processor configuration distinguishes the i3 and i5 models.
Samsung Kiosk Range · Kiosk
Samsung KM24C-3 24″ Kiosk
Malaysia model codeLH24KMC3BGCXXS
24-inch self-service kiosk platform using Windows 10 IoT Enterprise, designed for modular ordering, payment and information workflows.
24″Screen size
Full HDResolution
250 cd/m²Brightness
Windows IoTPlatform
Key capabilities
Kiosk Range platform highlights
Modular payment architecture
Supports configurations involving card terminal, barcode, QR code, NFC and printer modules, subject to regional accessories and system integration.
Flexible mounting
Countertop, floor-stand and wall-mount deployment can suit different customer-flow environments.
Commercial touch display
24-inch Full HD capacitive-touch platform designed for repeated user interaction.
Networked management
Remote management and application administration can be planned as part of the kiosk solution.
PNSS integration
PNSS can coordinate kiosk hardware with payment, network, application, printer/scanner, mounting and support requirements.
Technical reference
KM24C-3 specifications
| Model | KM24C-3 |
| Malaysia model code | LH24KMC3BGCXXS |
| Screen size | 24″ |
| Panel type | ADS |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² typ. without glass |
| Contrast ratio | 1,000:1 without glass |
| Viewing angle | 178° / 178° |
| Response time | 14 ms |
| Operation support | 16/7 |
| Set dimensions (W × H × D) | 547.9 × 334.4 × 48.8 mm |
| Set weight | 4.3 kg |
| Package dimensions | 620 × 419 × 122 mm |
| Package weight | 5.7 kg |
| On-mode power | 88 W |
| Sleep power | 0.5 W |
| Operating system | Windows 10 IoT Enterprise |
| Storage | 256GB |
| Processor | 11th Gen Intel Core; embedded processor varies by model |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. PNSS reconfirms current Malaysia availability, accessories and warranty terms before quotation. Samsung Malaysia product reference ↗
Connectivity & integration
Integration reference
| Touch | Capacitive touch |
| Mounting | Countertop / floor stand / wall-mount options |
| Peripheral concept | Payment terminal / QR-barcode / NFC / printer depending on configuration |
| Network | Managed network integration |
| Platform | Windows 10 IoT Enterprise |
PNSS application guidance
Where KM24C-3 fits
Retail ordering, self-service payment, visitor check-in, ticketing and information applications where a compact 24-inch kiosk is appropriate.
Retail orderingSelf-service paymentVisitor check-inTicketingFood & beverageInformation kiosk
PNSS selection note: PNSS will confirm the application software, payment-terminal compatibility, printer/scanner requirements, network security, mounting type, floor space, power, accessibility and after-sales support model.
Need help selecting the right Samsung solution?
PNSS can review application requirements, display or LED sizing, mounting, signal distribution, network infrastructure, content management and service access before quotation.
