Android 15
Modern embedded Android platform for interactive workflows.

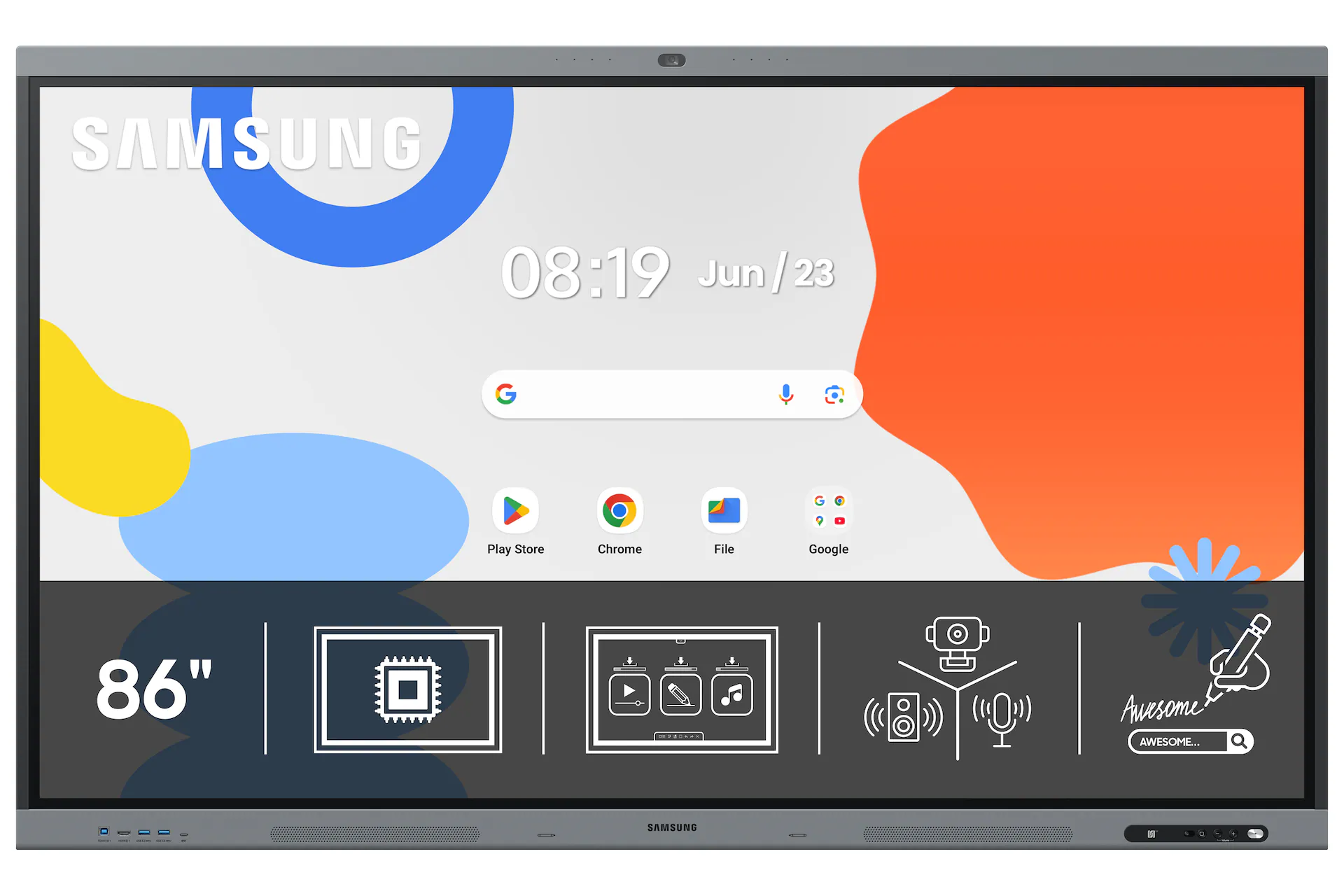

Official Samsung WAFX-P imagery. The second gallery image is the 86-inch size-specific product view for this model; the application image is a series reference.
Samsung WAFX-P Series · Interactive Displays
Samsung WA86FX-P 86″ WAFX-P Interactive Display
Malaysia model codeLH86WAFPLGCXXS
86″ 4K interactive display with Android 15, Google EDLA certification and integrated collaboration features.
86″Screen size
4K UHDResolution
450 nitBrightness
Android 15Platform
Choose another WAFX-P Series option
Key capabilities
WAFX-P Series platform highlights
Google EDLA
Google services and Play Store support for compatible education and collaboration apps.
Built-in collaboration hardware
Integrated 48MP camera, microphone system and speakers support video collaboration.
Interactive writing
Designed for whiteboarding, annotation and multi-user collaboration.
Network & wireless
Wi-Fi 6, Bluetooth and wired LAN support managed campus or corporate deployment.
Device management
Samsung management capabilities support multi-display administration and announcements in suitable deployments.
Technical reference
WA86FX-P specifications
| Model | WA86FX-P |
|---|---|
| Malaysia model code | LH86WAFPLGCXXS |
| Screen size | 86″ |
| Panel type | IPS |
| Resolution | 3840 × 2160 (4K UHD) |
| Pixel pitch | 0.493 × 0.493 mm |
| Brightness | 450 nit |
| Operation support | 12/7 |
| Set dimensions (W × H × D) | 1950.4 × 1174.0 × 87.1 mm |
| Set weight | 60.9 kg |
| Package dimensions | 2095 × 1265 × 185 mm |
| Package weight | 71.8 kg |
| VESA mount | 800 × 600 mm |
| On-mode power | 529 W |
| Operating system | Android 15 |
| Flash memory | 128GB |
Specifications are based on Samsung official documentation for the listed model/SKU and may be updated by the manufacturer. Current Malaysia availability, accessories and warranty terms should be verified at quotation stage. Samsung Malaysia product reference ↗
Connectivity & integration
Integration reference
| HDMI inputs | 2 × HDMI 2.1 |
|---|---|
| DisplayPort | 1 × DP 1.2 |
| USB | 4 × USB |
| Network | RJ45 LAN |
| Control | RS232 |
| Wireless | Wi-Fi 6 + Bluetooth |
| Touch | IR touch |
| OPS | OPS slot / optional Windows OPS workflow |
Application guidance
Where WA86FX-P fits
Classrooms, training rooms, meeting rooms and collaborative spaces requiring an integrated Android interactive display with Google services.
ClassroomTraining roomMeeting roomHybrid learningWhiteboardingInteractive presentation
Selection considerations: PNSS will confirm wall/mobile-stand load capacity, user height, camera sightline, network access, screen-sharing workflow, optional OPS Windows requirement and cable infrastructure.
System dependencies
Complete the interactive display deployment
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Physical integration
Mounting / mobile support
Confirm structure, VESA/load and service access for fixed or mobile deployment.
Open related area →Display workflow
Touch, compute & connectivity
Confirm writing, screen sharing, optional compute and connected-device workflow.
Discuss display workflow →Compatibility check
Compute & connectivity
Confirm USB-C/HDMI/network and optional compute/OPS requirements only where supported by the selected model.
Product family navigation
Continue from this model
Return to Samsung Interactive Displays, continue to the relevant solution, or open a selection guide without losing product context.
New project / active selection
Select through the current family
Use the parent family and solution links to compare application fit. Current Malaysia availability, exact SKU, warranty terms and compatible accessories should be verified at quotation stage.
Existing installed product
Assess support before replacing it
Already installed? Identify the exact model and condition first, then verify lifecycle, parts/software support and the practical repair or migration path.
Open legacy & replacement support →Other items in this family
Need help selecting the right Samsung solution?
Project selection should consider application requirements, display or LED sizing, mounting, signal distribution, network infrastructure, content management and service access together.
