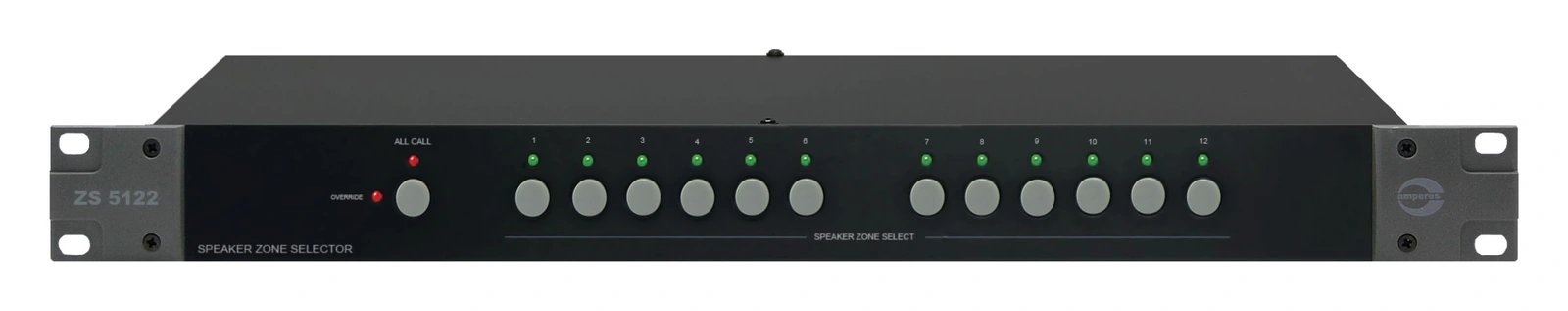

ZS5122
12-channel fail-safe speaker zone selector designed to maintain speaker-line connection through unit or power failure conditions.
Amperes · Zone selectors & decoders
Zone selectors & decoders
Amperes zone selectors & decoders Malaysia reference from PNSS covering ZS5122 · fail-safe 100V zone control, system design considerations and project integration guidance.
Why this function matters
System role before model number.
Zoning determines where routine and emergency audio is delivered. The design should follow building use, paging priorities and amplifier loading.
ZS5062
Six-channel fail-safe zone-selector variant for smaller systems.
TD series
Digital zone decoder/selector options for larger conventional digital PA systems.
Representative system deployment: In one modular 100V PA architecture, the ZS5122 was used as the fail-safe zone-control stage between the amplifier system and multiple speaker zones. This is one implementation example; the required number of zones and control method vary by project.
Selection checks.
Verify before reuse
Check the actual rack, speaker loads, line condition, cabling, power and control interfaces before assuming compatibility.
Document priorities
Define normal audio, paging, emergency override, fire-alarm triggers and fallback behavior before finalising the equipment list.
Confirm current model status
Current Amperes model status, firmware, accessories and project-specific approvals should be verified before formal quotation.
System dependencies
Complete the Amperes system chain
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Priority
Paging & emergency
Define priority and emergency-message sources before zone routing.
Open related area →Amplification
Power amplifiers
Coordinate zone distribution with amplifier loading and standby design.
Open related area →Supervision
Monitoring & changeover
Plan amplifier/speaker-line supervision around the final zone design.
Open related area →Selecting for a new project
Choose from the family, then verify availability
Use the listed models as the selection path. Exact Malaysia SKU, stock/channel status, warranty terms and accessories should be verified at quotation stage.
Maintaining an installed system
Do not assume an older model must be replaced
For installed systems, the appropriate path depends on product identification, supportability, compatibility and condition; the outcome may be repair, continued use, phased replacement or migration.
Assess an installed product →Need help selecting this part of the PA system?
Provide the relevant drawings, existing equipment list and required operating sequence.
