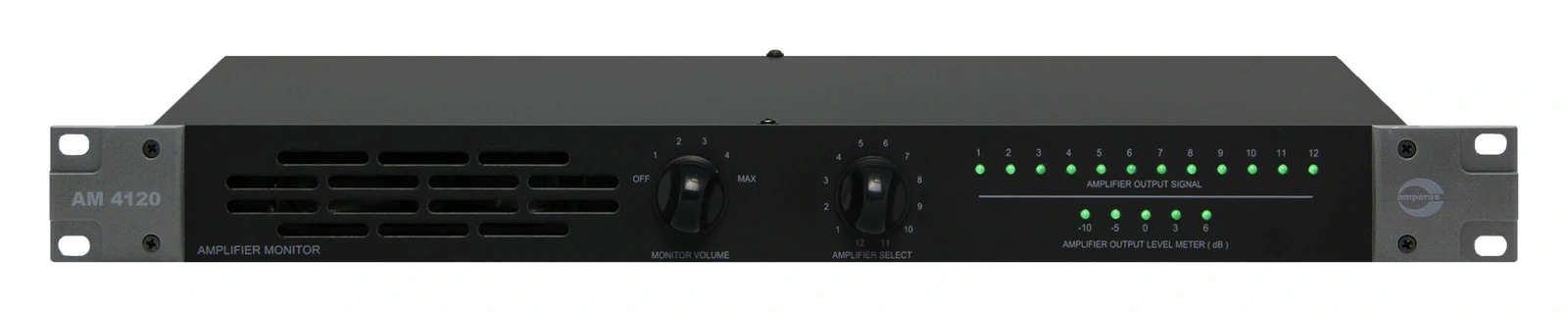

AM4120
12-channel 70V/100V amplifier output monitor with LED level indication and built-in listening speaker.
Amperes · Monitoring & changeover
Monitoring & changeover
Amperes monitoring & changeover Malaysia reference from PNSS covering AM4120 · LS4816 · standby amplifier supervision, system design considerations and project integration guidance.
Why this function matters
System role before model number.
Monitoring makes hidden PA failures visible before the system is required for a critical announcement.

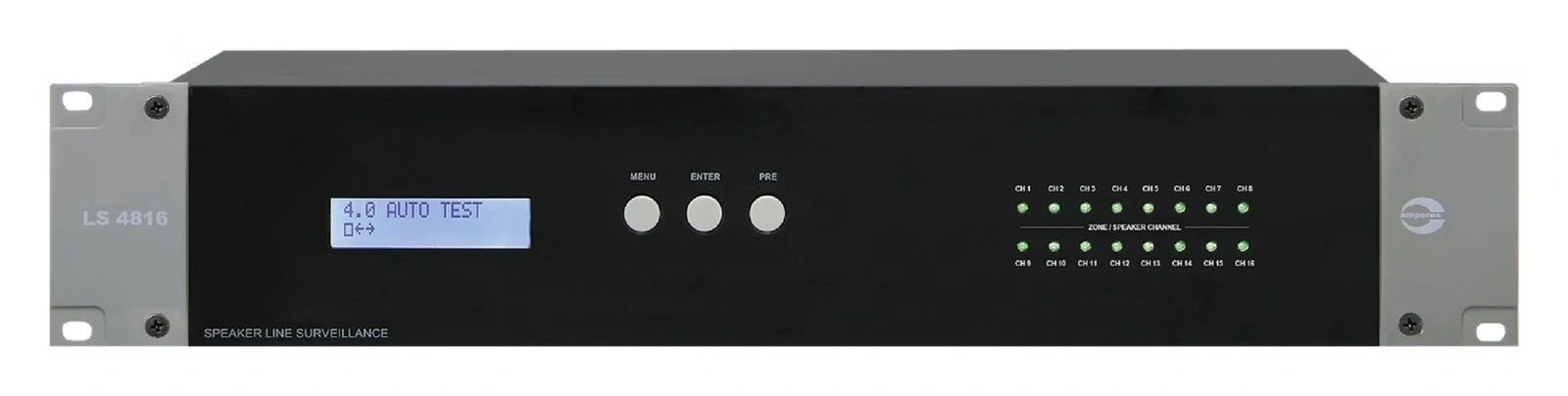

LS4816
16-channel speaker-line surveillance using impedance measurement to detect open circuit, short circuit and ground leakage.
AX3800 MK II / AC3801
Current automatic/manual standby-amplifier changeover options for larger redundancy architectures.
Representative system deployment: In one monitored PA rack, the AM4120 and LS4816 were used together for amplifier-status monitoring and 16-channel speaker-line surveillance. This illustrates one monitoring architecture; the final supervision and changeover design depends on system size, redundancy and project requirements.
Selection checks.
Verify before reuse
Check the actual rack, speaker loads, line condition, cabling, power and control interfaces before assuming compatibility.
Document priorities
Define normal audio, paging, emergency override, fire-alarm triggers and fallback behavior before finalising the equipment list.
Confirm current model status
Current Amperes model status, firmware, accessories and project-specific approvals should be verified before formal quotation.
System dependencies
Complete the Amperes system chain
A product is only one part of the deployment. Confirm the supporting components and infrastructure before final model selection or installation.
Dependency links are planning paths, not automatic compatibility claims. Exact model/SKU, interfaces, loading, firmware/software and accessories must be verified for the final project.
Amplification
Power amplifiers
Define the duty/standby amplifier architecture to be supervised.
Open related area →Distribution
Zone control
Map speaker-line supervision to the actual zone architecture.
Open related area →Power
Power distribution
Coordinate monitoring/changeover equipment with system power.
Open related area →Selecting for a new project
Choose from the family, then verify availability
Use the listed models as the selection path. Exact Malaysia SKU, stock/channel status, warranty terms and accessories should be verified at quotation stage.
Maintaining an installed system
Do not assume an older model must be replaced
For installed systems, the appropriate path depends on product identification, supportability, compatibility and condition; the outcome may be repair, continued use, phased replacement or migration.
Assess an installed product →Need help selecting this part of the PA system?
Provide the relevant drawings, existing equipment list and required operating sequence.
